Technical Parameters
Working Pressure： 35~140MPa（5000psi~20000psi)
Nominal Diameter： 2-1/16"~4-1/16"
Temperature Level： -46℃~121℃（level L-U）
Material level：DD-EE
|
Order number |
Model |
Spec |
Pressure
(MPa) |
Overall size(mm) |
Ring gaske |
|
L |
A |
H |
|
PC4F41810T200 |
FC1-13/16"-10M |
1-13/16" |
70/10000 |
463.5 |
146.1 |
652 |
BX151 |
|
PC4F41815T200 |
FC1-13/16"-15M |
1-13/16" |
105/15000 |
457.2 |
149.8 |
|
BX151 |
|
PC4F42205T200 |
FC2-1/16"-5M |
2-1/16" |
35/5000 |
371 |
138.1 |
|
R24 |
|
PC4F42210T200 |
FC2-1/16"-10M |
2-1/16" |
70/10000 |
521 |
140 |
649 |
BX152 |
|
PC4F42215T200 |
FC2-1/16"-15M |
2-1/16" |
105/15000 |
483 |
149.8 |
|
BX152 |
|
PC4F43403T200 |
FC3-1/8"-5M |
3-1/8" |
35/5000 |
473 |
183.9 |
|
R35 |
|
PC4F43210T200 |
FC3-1/16"-10M |
3-1/16" |
70/10000 |
619 |
206.2 |
|
BX154 |
|
PC4F43215T200 |
FC3-1/16"-15M |
3-1/16" |
105/15000 |
598 |
245 |
|
BX154 |
|
PC4F44203T200 |
FC4-1/16"-5M |
4-1/16" |
35/5000 |
549 |
249.8 |
|
R39 |
|
PC4F44210T200 |
FC4-1/16"-10M |
4-1/16" |
70/10000 |
670 |
259.4 |
|
BX155 |
|
PC4F44215T200 |
FC4-1/16"-15M |
4-1/16" |
105/15000 |
737 |
296.8 |
|
BX155 |
|
PC4F45403T200 |
FC5-1/8"-5M |
5-1/8" |
35/5000 |
727 |
322 |
|
R44 |
|
PC4F45410T200 |
FC5-1/8"-10M |
5-1/8" |
70/10000 |
737 |
334.1 |
|
BX169 |
|
PS4F42203T200 |
FLS2-1/16"-5M |
2-1/16" |
35/5000 |
371 |
137 |
520.6 |
R24 |
|
PS4F42210T200 |
FLS2-1/16"-10M |
2-1/16" |
70/10000 |
521 |
141.9 |
525.3 |
BX152 |
|
PS4F42215T200 |
FLS2-1/16"-15M |
2-1/16" |
105/15000 |
483 |
149.8 |
533 |
BX152 |
|
PS4F43403T200 |
FLS3-1/8"-5M |
3-1/8" |
35/5000 |
473 |
183.8 |
795.7 |
R35 |
|
PS4F43210T200 |
FLS3-1/16"-10M [1] [2] 下一頁 |
| |
 |
| Hits:115 Entry time:2026/3/17 【Print this page】 【Return】 |
|
Chinese
English
Russian

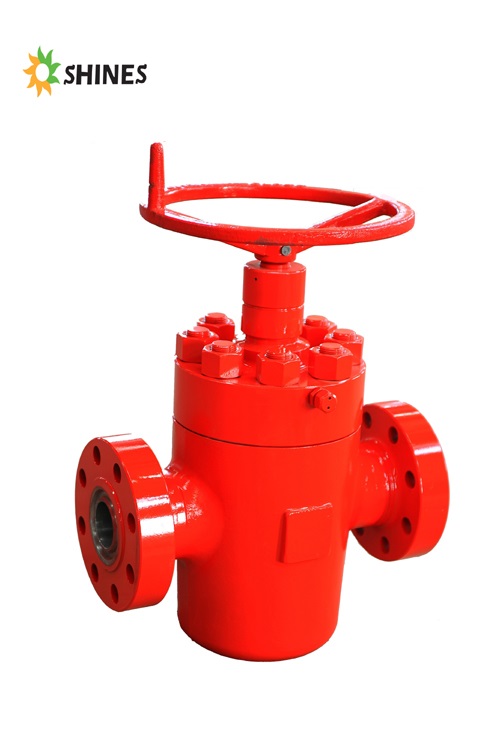

FC/FLS Valves
